-25%
Sz. 49 left
F/AR is compatible with tires up to 38mm (measured width)
Technical Specifications

• Wheelset - ZIPP 303s 700c
• Frameset - F/AR (w. Hw, Cockpit Specific Headset)

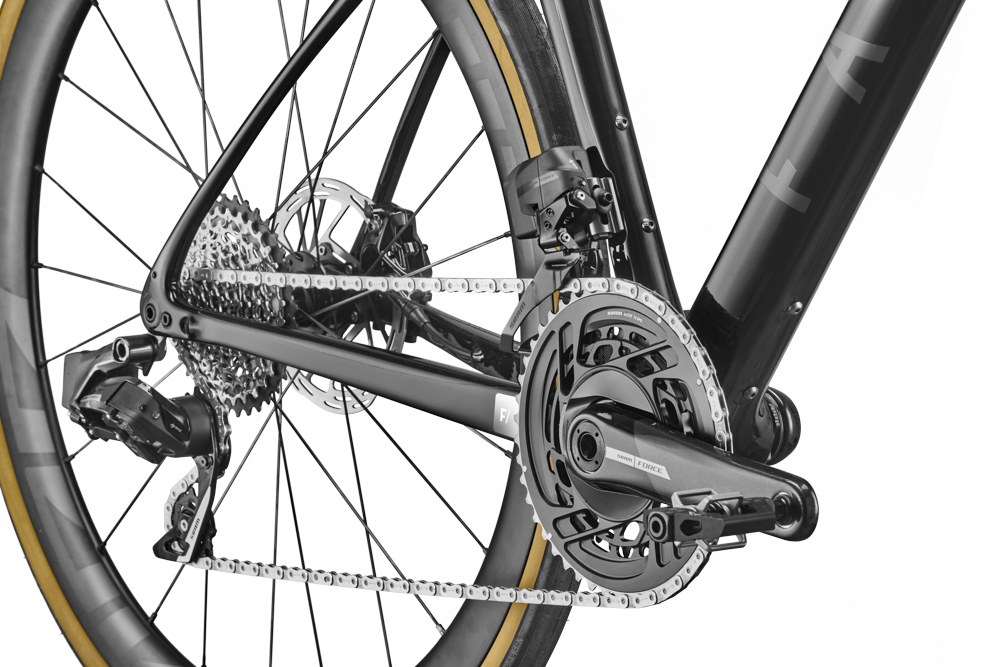

• Groupset - SRAM Force AXS 2x12s D2 - NEW
• Saddle - Fizik TEMPO ARGO R5 - 150mm
• Bottom Bracket - Token T47V29-TS T47

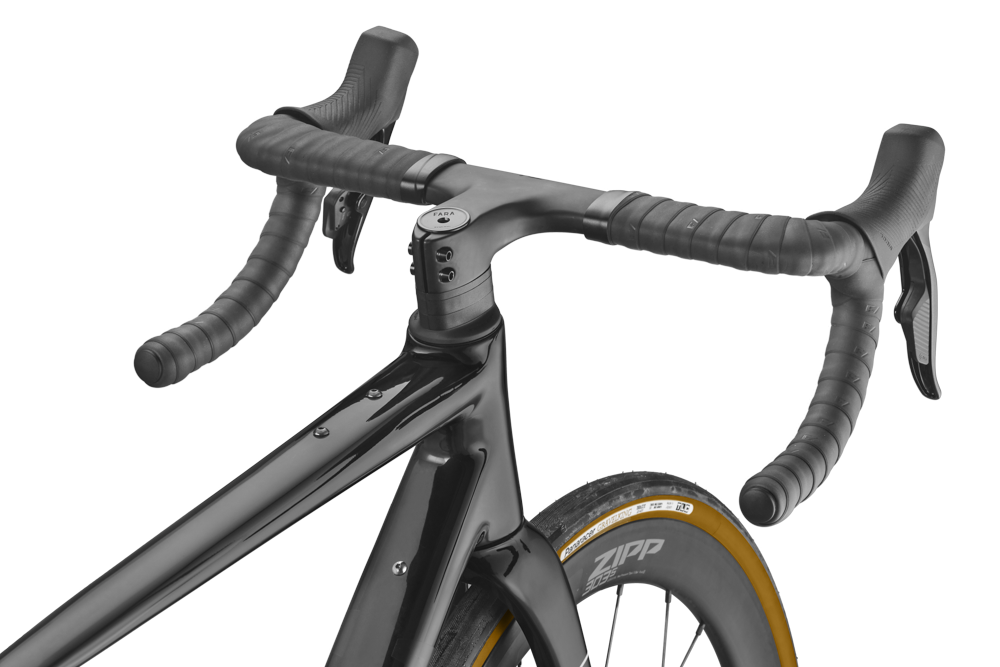

• Cockpit - F/ Carbon ROAD BARSTEM Mk.2

Size Specific Specification: 49cm
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c XDR
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Frameset - F/AR / Size: 49 / Cockpit Integration: Integrated / Color: Black Metal
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Frameset - F/AR / Size: 49 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Frame - F/AR2 / Color: Black Metal / Size: 49
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Rolling Tool Bag/ FARA Cycling Logo
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
1 x Fork - F/AR2 / Color: Black Metal / Offset: 56mm
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Groupset - SRAM Force AXS 2x12s D2 - NEW / Crank Length: 170mm / BB Type: Standalone / Gear Ratio: 46/33T W. 10-36T
1 x Front Derailleur - FORCE AXS D2 BRAZE
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Brake/shift Set - FORCE AXS D2 SJD FRT/LFT F20 1000
1 x Chain - FORCE D1 12S 120LI
1 x Front Chainring - FORCE D2 DUB 170 DM 4633
1 x Cassette - XG 1270 FORCE D1 SILVER 10-36
1 x Brake/shift Set - FORCE AXS D2 SJD REAR/RT F20 1800
1 x Rear Derailleur - FORCE AXS D2 MAX 36T
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
1 x Bottom Bracket - Token T47V29-TS T47
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 400 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 400 X 90 Mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
1 x Groupset - SRAM Force AXS 2x12s D2 - NEW / Crank Length: 172.5mm / Gear Ratio: 46/33T W. 10-36T / BB Type: Standalone
1 x Brake/shift Set - FORCE AXS D2 SJD REAR/RT F20 1800
1 x Chain - FORCE D1 12S 120LI
1 x Cassette - XG 1270 FORCE D1 SILVER 10-36
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
1 x Front Derailleur - FORCE AXS D2 BRAZE
1 x Rear Derailleur - FORCE AXS D2 MAX 36T
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Brake/shift Set - FORCE AXS D2 SJD FRT/LFT F20 1000
1 x Front Chainring - FORCE D2 DUB 1725 DM 4633
1 x Bottom Bracket - Token T47V29-TS T47
1 x Frameset - F/AR / Size: 53 / Cockpit Integration: Integrated / Color: Black Metal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Frameset - F/AR / Size: 53 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Frame - F/AR2 / Color: Black Metal / Size: 53
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Rolling Tool Bag/ FARA Cycling Logo
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c XDR
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 400 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 400 X 90 Mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x Frameset - F/AR / Size: 56 / Cockpit Integration: Integrated / Color: Black Metal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Frameset - F/AR / Size: 56 / Color: Black Metal
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Frame - F/AR2 / Color: Black Metal / Size: 56
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c XDR
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Groupset - SRAM Force AXS 2x12s D2 - NEW / Crank Length: 172.5mm / Gear Ratio: 46/33T W. 10-36T / BB Type: Standalone
1 x Brake/shift Set - FORCE AXS D2 SJD REAR/RT F20 1800
1 x Chain - FORCE D1 12S 120LI
1 x Cassette - XG 1270 FORCE D1 SILVER 10-36
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
1 x Front Derailleur - FORCE AXS D2 BRAZE
1 x Rear Derailleur - FORCE AXS D2 MAX 36T
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Brake/shift Set - FORCE AXS D2 SJD FRT/LFT F20 1000
1 x Front Chainring - FORCE D2 DUB 1725 DM 4633
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 420 X 90 Mm
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 420 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Bottom Bracket - Token T47V29-TS T47
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 420 X 90 Mm
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 420 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c XDR
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Bottom Bracket - Token T47V29-TS T47
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
1 x Frameset - F/AR / Size: 59 / Cockpit Integration: Integrated / Color: Black Metal
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Frameset - F/AR / Size: 59 / Color: Black Metal
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Frame - F/AR2 / Color: Black Metal / Size: 59
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Groupset - SRAM Force AXS 2x12s D2 - NEW / Crank Length: 172.5mm / Gear Ratio: 46/33T W. 10-36T / BB Type: Standalone
1 x Brake/shift Set - FORCE AXS D2 SJD REAR/RT F20 1800
1 x Chain - FORCE D1 12S 120LI
1 x Cassette - XG 1270 FORCE D1 SILVER 10-36
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
1 x Front Derailleur - FORCE AXS D2 BRAZE
1 x Rear Derailleur - FORCE AXS D2 MAX 36T
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Brake/shift Set - FORCE AXS D2 SJD FRT/LFT F20 1000
1 x Front Chainring - FORCE D2 DUB 1725 DM 4633
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

F/All-Road Force AXS ´24

-25%
NOK 60,990
NOK 45,790
Our flagship model, the do-it-all F/All-Road Force AXS, is created for all-day comfort on longer rides, be it bikepacking on smooth tarmac or getting rowdy on mixed surface routes. This full-carbon frame is fast and responsive enough to be used exclusively on the road, but features wide tire clearance allowing it to be able to handle plenty of off-road riding too. What we love most about the F/All-Road is being able to change the characteristics of the bike so drastically with a simple switch of wheels.

Powered by SRAM´s latest technology for wireless electronic shifting, the Force AXS boast a wide gear ratio and precise shifting. This groupset is for riders seeking high-performing versatility and low weight.

The Zipp 303S wheels are designed for superior aerodynamics and lightweight performance. They provide speed and agility on diverse terrains and the tubeless-ready technology increases puncture resistance.

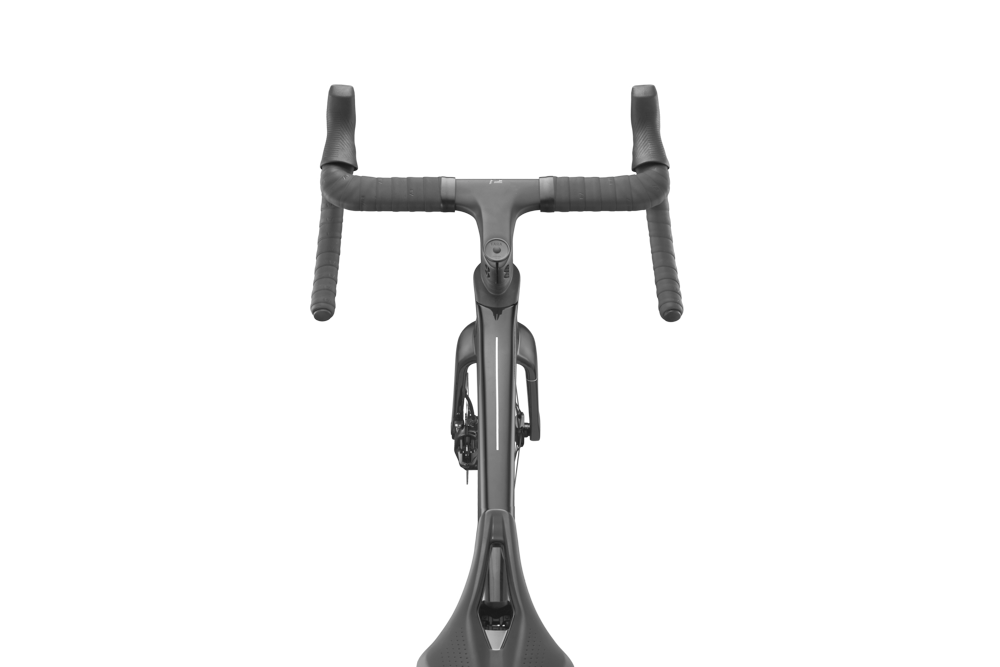

• Integrated handlebars
• Up to 38mm tires*
• 980g frame weight
• Electronic shifting
• Integrated mounts for bikepacking bags
• Hidden fender mounts

* Please note that actual width depends on rim/tire combination and is measured at the widest point of tire mounted on a wheel rim and inflated to corresponding pressure.

Material Carbon
Color

Reviews
4.5
Overall rating
Apr 29th 2020
I recently received my F Gravel. Albeit some delays due to coronavirus, all I can say is I found pure excellence in customer experience from pre-purchase inquiries through to the purchase process and the quality of the bike. The team has been super helpful and reactive, and the bike is amazing. The combination with the 650b wheels makes an amazingly comfortable and fast ride. Maybe I’m also putting in a bit more effort bc the bike deserves it 😜 Needless to say, heads turn on the street non-stop
Javier Arbizu
Feb 8th 2023
I bought a F/Gravel from Fara Cycling in the Signature Phylite colour. It really is a beautiful bike, the paint job is incredible. But the build quality is also top notch. I chose an Ekar drive train from Campagnola and Fulcrum wheels. Its possible to spec the bike exactly the way you want it or they also have an off the rack pre built setup as well. It took a while to get the bike but it was worth the wait. The ride is beautiful, Im delighted with it.
Peter Levenspiel – United Kingdom
Nov 25th 2016
Fara is a trusted bike in all opinion you have on a bike, its tight in frame and wen you take a tripp on non asfalt way. Breaks 100% i am on this bike every day 2 weeks, , wen i test a new bike in the collection. i give this bike 5/5. i am impressd of Fara s Gemonotri, just one thing, impressed 5/5.
Jo Nordskar – Norway
July 22nd 2020
Bare hyggelige folk og deilig kaffe i butikken😀 Support your LBS!
Thomas Rem
January 30th 2019
Utrolig fin sykkel både å sykle og å se på, mange tilpasnings muligheter!
Adrian Kvernbråten

Which bike is right for me?

Select size Size guide

S / 49cm

SOLD OUT
Notify me
M / 53cm

SOLD OUT
Notify me
L / 56cm

SOLD OUT
Notify me
XL / 59cm

SOLD OUT
Notify me


Compatible accessories

Water Bottle Bundle NOK 950 Add to cart
Fara Rear Derailleur Mount (2021-) NOK 290 Add to cart
BikeFinder GPS tracker NOK 1,649 Add to cart
Keo2Max Carbon Pedals NOK 999 Add to cart
Candy 3 Black Pedals NOK 1,490 Add to cart
Double Shot 1 Black Pedals NOK 590 Add to cart
Ultegra PD-R8000 SPD-SL NOK 1,949 Add to cart
Integrated Saddle Pack NOK 1,690 Add to cart
Integrated Frame Bag NOK 990 Add to cart
Handlebar Bag NOK 1,490 Add to cart


Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: S / 49cm: BIFAAR2490BL2. M / 53cm: BIFAAR2530BL2. L / 56cm: BIFAAR2560BL2. XL / 59cm: BIFAAR2590BL2.

The details

Features
• Carbon fiber frame and fork construction
• Frame weight 980 grams (Size dependant)
• Fork weight 390 grams
• Integrated Bikebacking System
• Integrated Fender mounts front and rear
• Light rack compatible mounts
• Three bottle mounts
• Top tube Bento mount
• Fork mounted cargo cage attachments
• Front/rear flat mount disc brakes 140mm (160mm w/adapter)
• Fully integrated brake cable routing F/R
• Fully integrated derailleur routing F/R
• 1.5'' Token S-Box integrated headset
• Compatible with Electronic and Mechanical shifting
• 1x and 2x compatible
• 27.2 mm round seatpost, universal clamp
• 100mm and 142mm TA 12mm axles
• BB386 bottom bracket standard

Size
4 sizes to fit nearly every rider

Our F/All-Road size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Size Guide

Suggested height

160
170
180
190
200
49 cm
160 — 170 cm
53 cm
167 — 177 cm
56 cm
177 — 187 cm
59 cm
185 — 195 cm
Geometry
Size S
49cm
M
53cm
L
56cm
XL
59cm
A. Stand-over height 728mm762mm798mm827mm
B. Front centre 590mm592mm609mm626mm
C. Rear centre 415mm415mm415mm415mm
D. Wheel base 993mm996mm1013mm1030mm
E. Top tube length 521mm547mm564mm581mm
F. Stack 530mm555mm583mm610mm
G. Reach 369mm377mm386mm395mm
H. Head stack 115mm137mm166mm194mm
I. Seat tube angle 74°73°73°73°
J. Head tube angle 71°72°72°72°
K. BB Center to the top
of the seat tube
487mm517mm557mm585mm
L. Max Seatpost insertion 170mm200mm220mm220mm
Recently viewed
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More
